Description

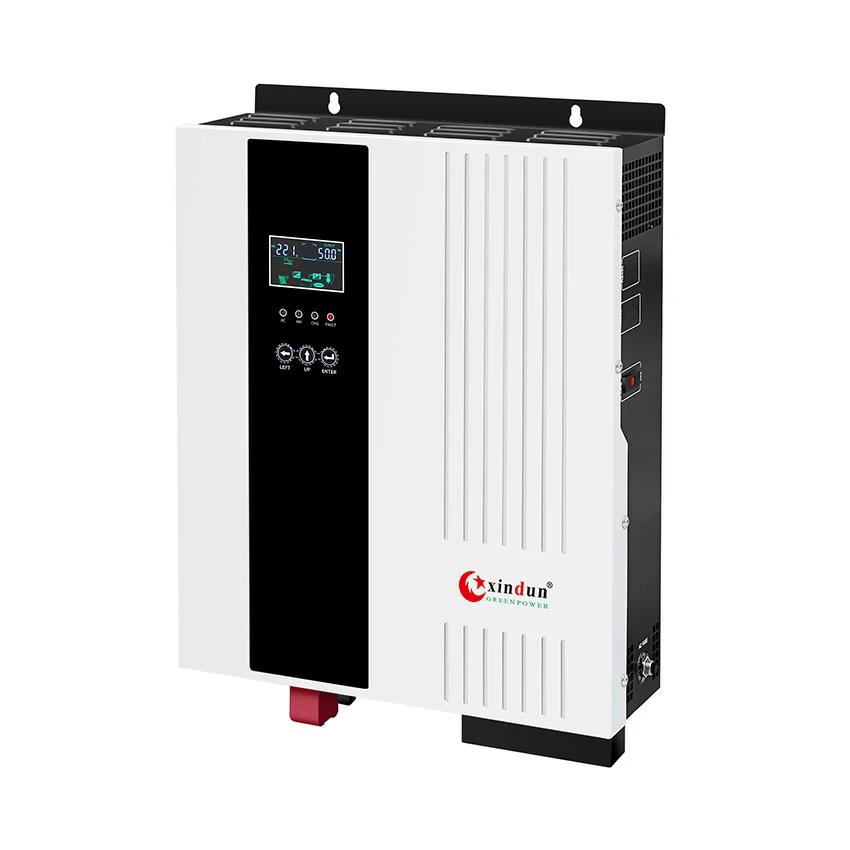

This pure sine wave output hybrid inverter, ranging from 700W to 40KW, more than 8kw can be customized split phase output,offers priority for power sources, including solar PV, energy storage, or the grid. It features an adjustable charging current range of 0-20A and is suitable for both industrial and residential applications, effectively addressing power interruptions in various usage scenarios, ensuring continuous power supply.
Features
1.Equipped with an internal AVR and a low-loss transformer to regulate voltage and ensure a stable output.
2.Inverters rated above 8000W can deliver two-phase voltage outputs, such as 110V/220V or 120V/240V.
3.Maintains an output power factor of 1.0.
4.Supports custom batteries, including lithium-ion and lead-acid options, providing flexibility for battery choice.
5.Offers WiFi and GPRS connectivity for mobile app control and RS485 communication to monitor real-time data and operational status.
6.Features an integrated MPPT solar controller with intelligent battery charging design, optimizing battery lifespan and handling overload situations.
7.Includes multiple protection features, such as high-temperature protection,output short-circuit protection, cold start capability, and more.
Technical Specifications
Rated Power:700W 1KW 1.5KW 2KW 3KW 3.5KW 4KW 5KW 6KW 7KW 8KW 10KW 12KW 15KW 20KW 25KW 30KW 40KW
Battery Voltage: 12V/24V/48V /96V/192V/240V/384VDC
Output Voltage(AC Mode)：110VAC / 120VAC/ 220VAC /230VAC/ 240VAC
Output Frequency(AC Mode)：50Hz，60Hz
Charging Mode: MPPT
700W-7KW MPPT tracking voltage range：
12V system:15V-80V
24V system:30V-100V
48V system:60V-140V
96V system:120V-220V
8KW-40KW MPPT tracking voltage range：
48V system:60V-140V
96V system:120V-220V
192V system:240V-360V
240V system:300V-400V
384V system:480V-640V
700W-1.5KW Maximum PV Input Power:12V(420W)/24V(840W)/48V(1680W)
2KW-4KW Maximum PV Input Power:24V(1680W)/48V(3360W)/96V(6720W)
5KW-7KW Maximum PV Input Power:48V (5600W)/96V(6720W)
Wiring Diagram
The wiring guide for 700W-40KW hybrid inverter depicts connections for the grid, generator, battery, solar panels, and AC output. It caters to a variety of loads,including freezer,air conditioner,motor,water pump,percussion drill. If you have any inquiries while installation, our proficient team is on hand to offer thorough and patient support.
What we offer
Free sample offer:
To ensure you have a comprehensive experience with Xindun Power’s offerings, we extend a free sample service. For bulk orders of our products, we will subtract the sample costs from your overall expenditure, that means we provide you with samples free of charge.
Hybrid inverter product wholesale:
Xindun Power provides a combination of ample inventory and competitive wholesale pricing to increase your business’s cost-efficiency. With four efficient production lines and a team of skilled technicians, each possessing over a decade of inverter manufacturing experience, we guarantee high productivity and robust manufacturing capabilities. Our global network of overseas warehouses guarantees sufficient stock for on-time order fulfillment. As the original inverter manufacturer, Xindun offers highly competitive pricing, paving the way for a mutually beneficial, long-lasting partnership.
Solar inverter accppt OEM/ODM：
At Xindun, we are proud to provide OEM/ODM services that cover personalized logos, exterior designs, special voltage, and power configurations, all with flexibility in RFQ minimum orders. With 15 utility model patents, 10 computer software patents, and 5 design patents, our substantial research and design capabilities service to you. In addition, we possess multiple national professional inspection certifications, including CE, IEC, TUV, TLC, ISO, MCS, and more. We empower importers and traders to create their own branded products, helping them craft unique items and gain a competitive edge in the market.
Solar hybrid inverter solutions customization:
Xindun is resolute in delivering tailor-made solar solutions for engineering projects. Our comprehensive service encompasses project design, configuration, product manufacturing, installation, debugging, post-support, and investment return analysis. We empower you to sculpt your solar future while conserving your valuable time and resources.
Xindun Power Factory Production Strength
With a rich history of 18 years, Xindun excels in the manufacturing of inverters. Our expansive 20,000-square-meter facility is equipped with a workforce of more than 100 skilled individuals. We proudly serve customers in 100+ countries throughout Asia, Africa, Latin America, and beyond. Trust in our efficient production processes to meet your delivery deadlines. Xindun, your steadfast source for top-quality hybrid inverters.
