Off Grid Solar System Kit

Harness the power of the sun with our off grid solar system kit, providing reliable and sustainable electricity for remote locations, off grid homes, and backup power solutions. Experience energy independence with our off grid solar kit, delivering seamless integration of solar panels, combiners, batteries, solar controllers and inverters for reliable power generation in off grid scenarios.

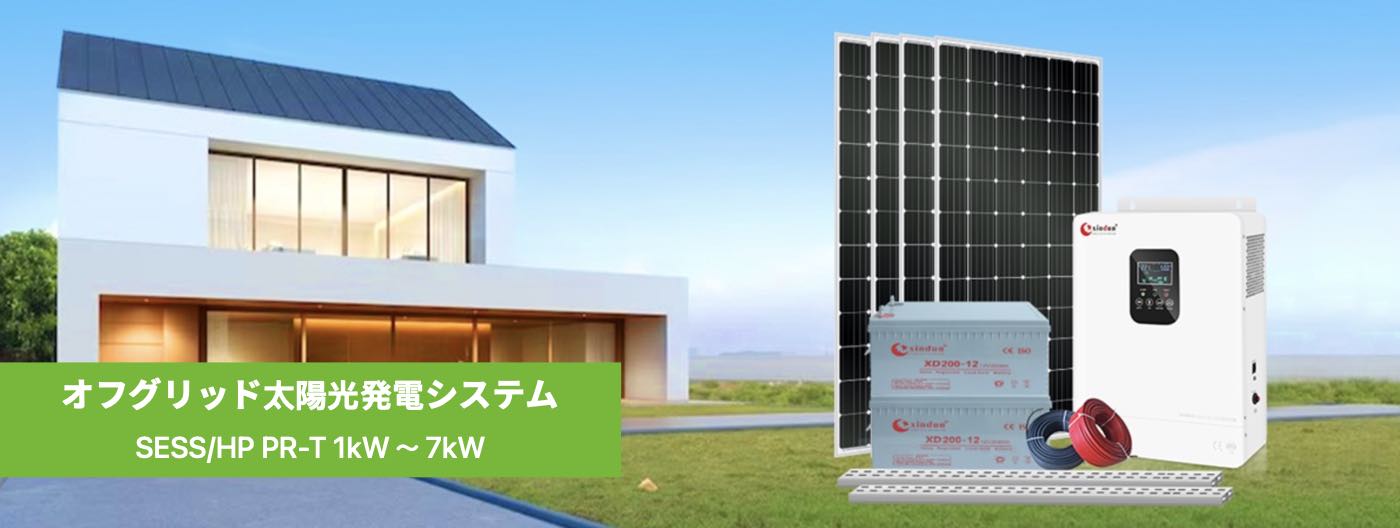

off grid solar kit sess-hp pro-t
Off Grid Solar System Kit Equipment List
 ModelSESS 1KW12v-HP PROTSESS 1.5KW 24v-HP PROT SESS 3.2KW 24v-HP PROT SESS 5KW 48v-HP PROT SESS 7.2KW 48v-HP PROT
 330W Solar Panel 2 Pieces 3 Pieces 6 Pieces 9 Pieces 15 Pieces
 Combine box without without without without 3 in 1 out 1pc
 Off Grid Inverter 1kw 12v with 80A mppt 1.5kw 24v with 60A mppt 3.2kw 24v with 100A mppt 5kw 48v with 100A mppt7.2 kw 48v 150A mppt
 12V200AH lead acid Battery(Lithium battery acceptable) 1 Piece 2 Piece 2 Piece 4 Piece 4 Piece
 PV Cable 100 Meters 100 Meters 100 Meters 200 Meters 300 Meters
 MC4 Connector 2 Pairs 2 Pairs 3 Pairs 4 Pairs 4 Pairs
 Mounting System 1 set 2 set 3 set 6 set 9 set

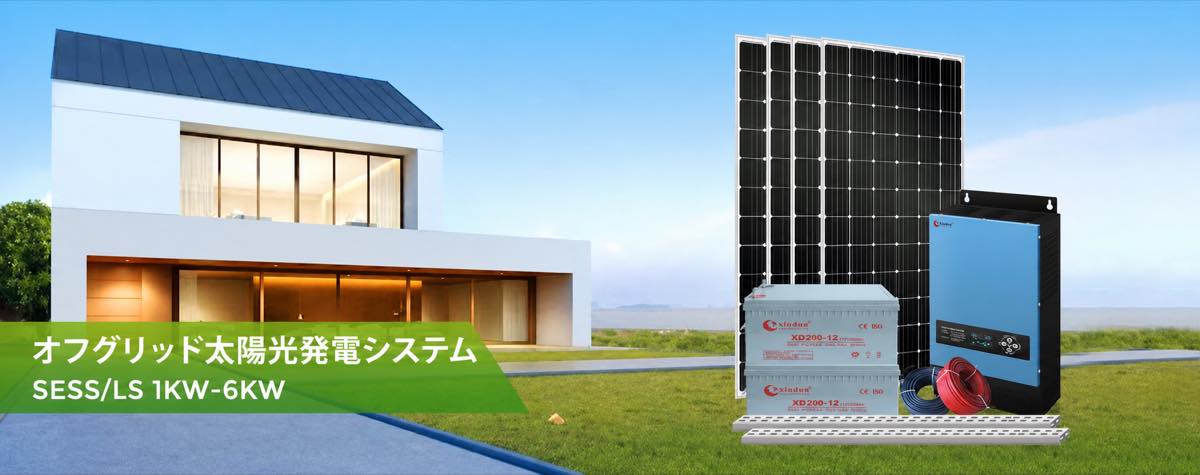

off grid solar kit sess-ls
Off Grid Solar System Kit Equipment List
 ModelSESS 1KW24v-LSSESS 2KW 24v-LS SESS 3KW 24v-LS SESS 5KW 48v-LS SESS 6KW 48v-LS
 330W Solar Panel 2 Pieces 4 Pieces 6 Pieces 9 Pieces 12 Pieces
 Combine box without without without without 3 in 1 out 1pc
 Off Grid Inverter 1kw 24v with 30A mppt 2kw 24v with 50A mppt 3kw 48v with 60A mppt 5kw 48v with 80A mppt6kw 48v 80A mppt
 12V200AH lead acid Battery(Lithium battery acceptable) 2 Piece 2 Piece 2 Piece 4 Piece 4 Piece
 PV Cable 100 Meters 100 Meters 200 Meters 300 Meters 300 Meters
 MC4 Connector 2 Pairs 2 Pairs 4 Pairs 5 Pairs 5 Pairs
 Mounting System 1 set 2 set 3 set 6 set 8 set

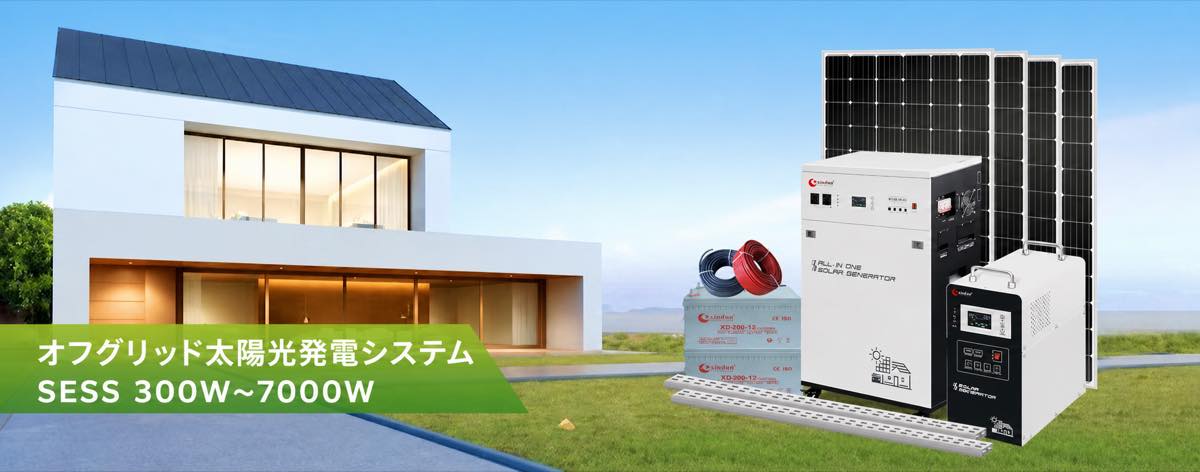

off grid solar kit sess
300W-1000W Off Grid Solar System Kit Equipment List
ModelSESS300W 12v-ESSSESS500W 12v-ESSSESS1000W 12v-ESS
160W Solar Panel1 Pieces1 Pieces2 Pieces
Combine Boxwithoutwithoutwithout
Off Grid Inverter300w 12v with 20A pwm500w 12v with 20A pwm1000w 12v with 40A pwm
Lead Acid Battery (Lithium battery acceptable)12V50AH * 1 Piece12V50AH * 1 Piece12V100AH * 1 Pieces
PV Cable40 Meters600 Meters100 Meters
Battery Cable2 paris2 paris2 paris
MC4 Connectorwithoutwithout2 Pairs
Mounting System1 set1 set1 set



2KW-7KW Off Grid Solar System Kit Equipment List
ModelSESS2KW 24v-ESSSESS3KW 24v-ESSSESS4KW 48v-ESSSESS5KW 48v-ESSSESS6KW 48v-ESSSESS7KW 48v-ESS
330W Solar Panel4 Pieces4 Pieces8 Pieces8 Pieces8 Pieces8 Pieces
Combine boxwithoutwithoutwithoutwithoutwithoutwithout
Off Grid Inverter2kw 24v with 60A mppt3kw 24v with 60A mppt4kw 48v with 60A mppt5kw 48v with 60A mppt6kw 48v with 60A mppt7kw 48v with 60A mppt
12V 200AH lead acid Battery (Lithium battery acceptable)2 Piece2 Pieces4 Pieces4 Pieces4 Pieces4 Pieces
PV Cable60 Meters100 Meters100 Meters100 Meters100 Meters100 Meters
Battery Cable2 paris2 paris2 paris2 paris2 paris2 paris
MC4 Connector3 Pairs3 Pairs4 Pairs4 Pairs4 Pairs4 Pairs
Mounting System1 set1 set1 set1 set1 set1 set

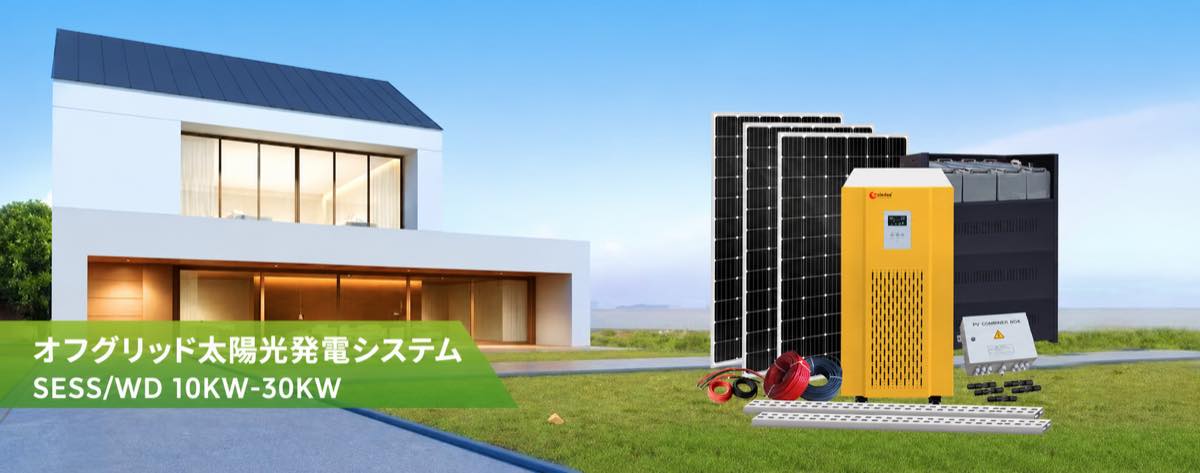

off grid solar kit sess-wd
Off Grid Solar System Kit Equipment List
ModelSESS802WSESS103WSESS153WSESS203WSESS303WSESS403W
Solar PanelPoly 330W
 (12 Pieces)
Mono 390W
(12 Pieces)
Mono 390W
(24 Pieces)
Mono 390W
(32 Pieces)
Poly 330W
(54 Pieces)
Mono 390W
(64 Pieces)
Combiner Box500VDC 3in1out (1 Piece)500VDC 3in1out (1 Piece)500VDC 3in1out (1 Piece)500VDC 2in1out (2 Pieces)3in1out (2 Pieces)1000VDC 2in1out (2 Pieces)
MPPT Controller96VDC 50A (1 Piece)
MPPT built-in solar inverter
96VDC 50A (1 Piece)
MPPT built-in solar inverter
192VDC 50A (1 Piece)
MPPT built-in solar inverter
192VDC 100A (1 Piece)240VDC 100A (1 Piece)384VDC 100A (1 Piece)
Off Grid Inverter96VDC 8KW96VDC 10KW192VDC 15KW192VDC 20KW240VDC 30KW384VDC 40KW
12V200AH lead acid Battery8 Pieces8 Pieces16 Pieces32 Pieces40 Pieces64 Pieces
PV Cable4mm² ×100m (Solar Panel to PV combiner)

10mm² ×100m (PV combiner to Solar inverter)
4mm² ×100m (Solar Panel to PV combiner)

10mm² ×100m (PV combiner to Solar inverter)
4mm² ×200m (Solar Panel to PV combiner)

10mm² ×100m (PV combiner to Solar inverter)
4mm²×200m (Solar Panel to PV combiner)

10mm² ×100m (PV combiner to MPPT)
4mm²×200m (Solar Panel to PV combiner)

10mm²×200m (PV combiner to MPPT)
4mm²×200m (Solar Panel to PV combiner)

10mm²×200m (PV combiner to MPPT)
Battery Cable16mm² (11 paris)25mm² (10 paris)25mm² 10m/pcs (21 paris)25mm² 20m/pcs (41 pairs)25mm² 10m/pcs (41 pairs)25mm² 10m/pcs (62 pairs)
M4 plug (male and female)9 pairs 1 in 1 out9 pairs 1 in 1 out21 pairs 1 in 1 out28 pairs 1 in 1 out48 pairs 1 in 1 out60 pairs 1 in 1 out
Mounting System1 set1 sets1 sets1 sets1 sets1 sets

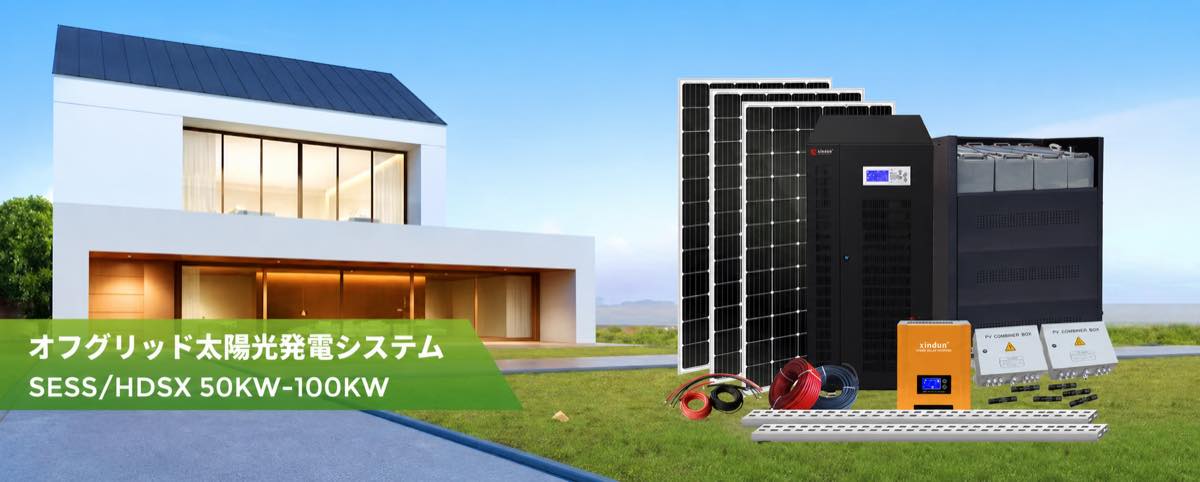

off grid solar kit sess-hdsx
Off Grid Solar System Kit Equipment List
ModelSESS30KW 192v-HDSXSESS50KW 384v-HDSXSESS80KW 384v-HDSXSESS100KW 384v-HDSX
Solar Panel390W*48 Pieces390W*64 Pieces330W*128 Pieces330W*192 Pieces
Combiner Box500VDC 3 in 1 out*21000VDC 2 in 1 out*21000VDC 2 in 1 out*41000VDC 3 in 1 out*4
Off Grid 3 Phase Inverter32kw 192v pure sine wave48kw 384v pure sine wave80kw 384v pure sine wave100kw 384v pure sine wave
MPPT Solar Controller100A 192V*1100A 384V*1100A 384V*2100A 384V*2
12V 200AH lead acid Battery
(Lithium battery acceptable)
48 Pieces64 Pieces96 Pieces96 Pieces
PV Cable200 Meters200 Meters300 Meters400 Meters
Battery Cable2 paris2 paris2 paris2 paris
MC4 Connector1 in 1 out*421 in 1 out*601 in 1 out*1201 in 1 out*180
Mounting System4 set8 sets16 sets16 sets

More Products

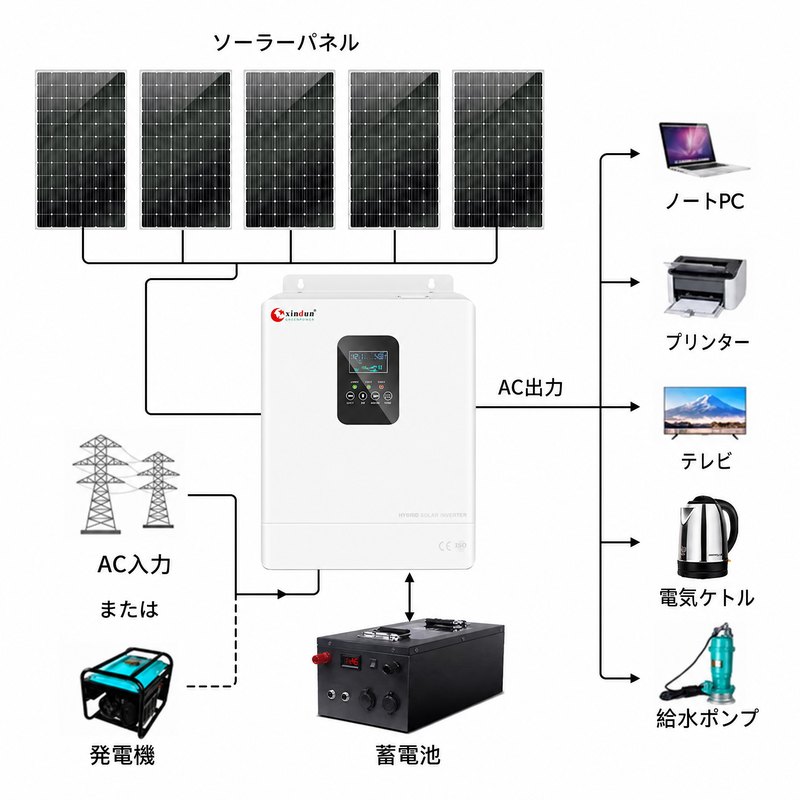

3kv 3kva 3kw off grid solar system kit with battery
3KW Off Grid Solar Kit

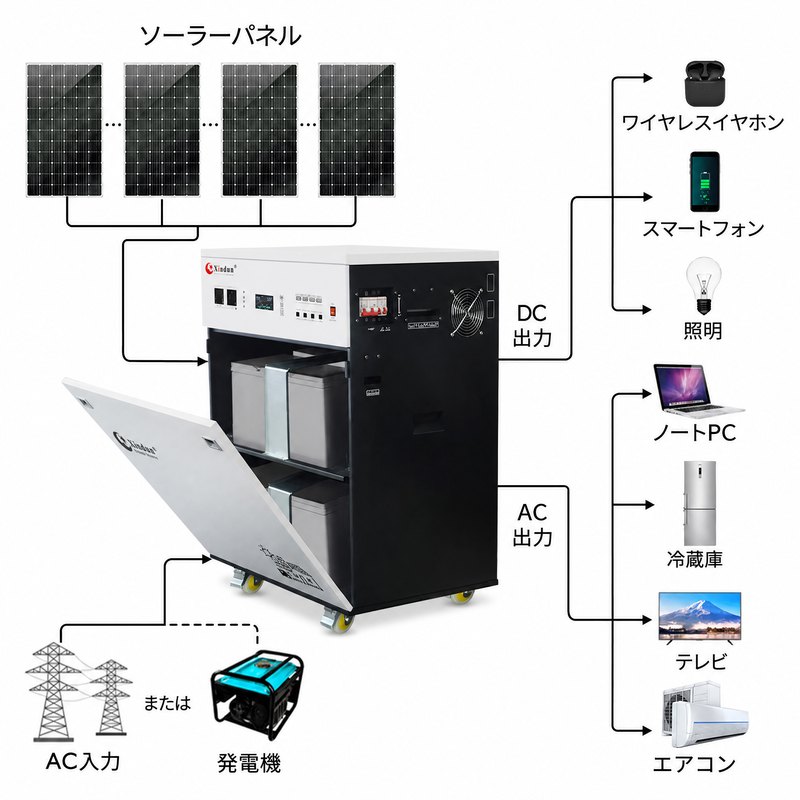

1500W 2000W 3000W 4000W 5000W 6000W Solar Panel Kit
5KW Off Grid Solar Kit

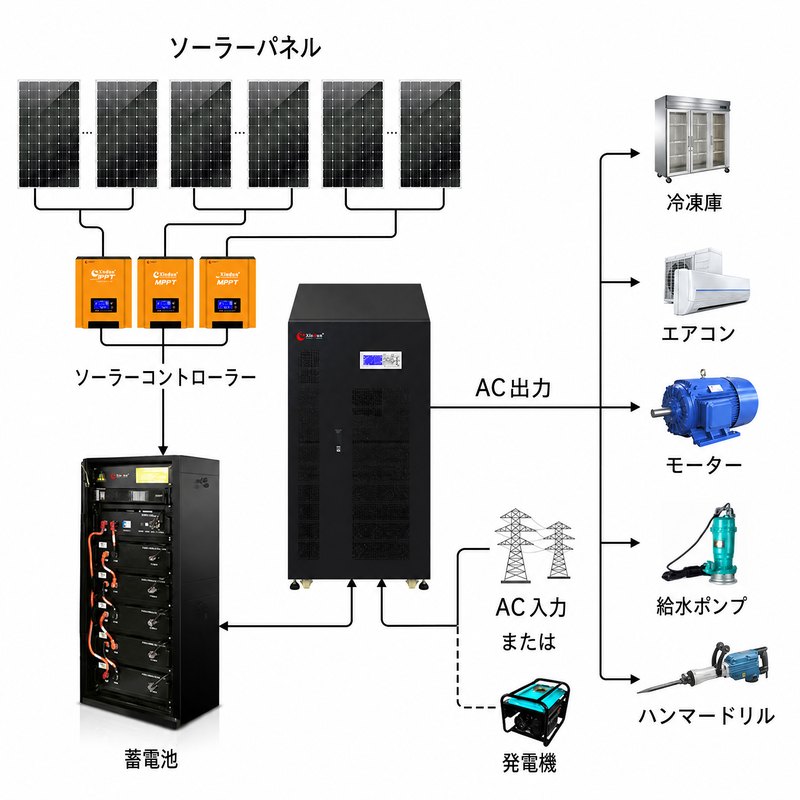

off grid solar energy system 100kw
100KW Off Grid Solar Kit

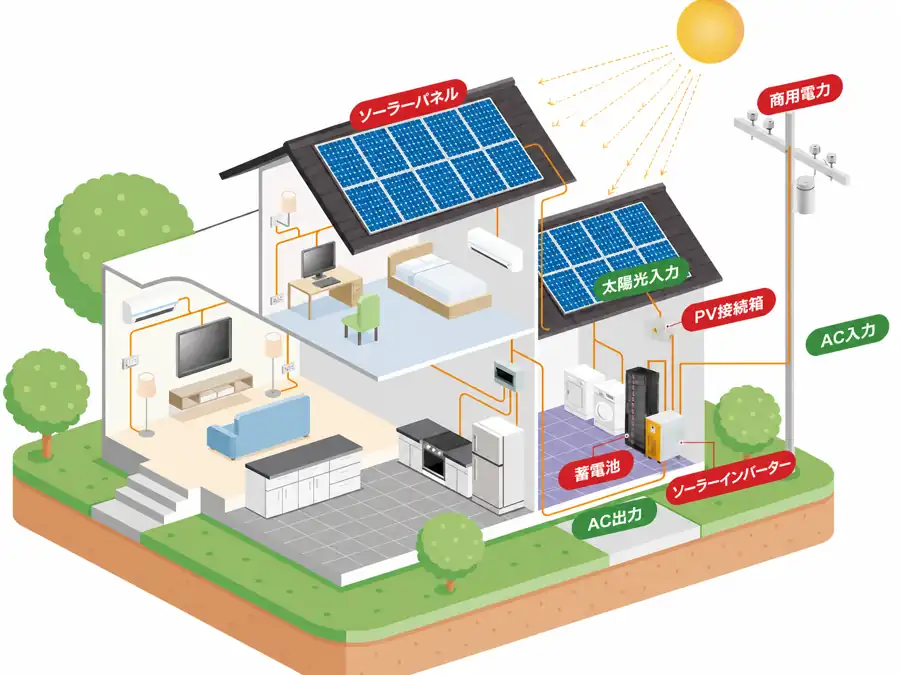

OFF GRID SOLAR SYSTEM KIT COMPONENTS

01

Solar Panels

High-efficiency solar panels harness sunlight and convert it into clean electricity, providing the foundation for your solar system kit.

02

PV Combiner

The PV combiner box consolidates multiple strings of solar panels, ensuring efficient power distribution and protection against overcurrent.

03

Solar Inverter

The solar inverter converts the direct current (DC) generated by the solar panels into alternating current (AC).

04

Solar Controller

The solar controller regulates the charging and discharging of batteries, optimizing the performance and lifespan of the solar energy system.

05

Batteries

Storage batteries store excess solar energy for use during periods of low sunlight or at night, providing reliable power supply when the sun is not available.

06

Solar Mounting Bracket

The solar mounting bracket securely holds the solar panels in place, ensuring optimal sunlight exposure and protecting them from external elements.

07

Accessories

Various accessories such as cables, MC4 connectors, and fuses are included to facilitate the installation, maintenance, and monitoring of the solar system kit.

CASE

hp pro-t off grid solar system company
5KW Off Grid Solar Kit in Madagascar

1. 5kw high frequency hybrid inverter, built-in MPPT controller, 1 pc
2. 500W solar panel, 6 pcs, 2 in series, 3 in parallel
3. 200ah, 12V, LifePO4 batteries in series, 4 pcs

ls off grid solar system company
5KW Home Off Grid Solar Kit in Montenegro

1. LS Off Grid Solar Inverter 48V/5KW, 1 pc
2. MPPT 48V 100A, 1 pc
3. 500W solar panel, 6pcs
4. 200AH gel battery, 4 pcs

ess off grid solar system company
5KW Off Grid Solar Kit in Congo

1. 5kw pure sine wave inverter with 48V/60A MPPT Solar Charge Controller and energy storage, 1 pc
2. 500w solar panels, 10pcs, 2pcs in series, 5pcs in parallel
3. 200ah/12V lead-acid batteries in series, 4pcs

wd off grid solar system company
10KW Off Grid Solar Kit in Dodobas

1. 10KW 96V single phase inverter
2. MPPT controller, 50A 96V
3. 200AH 12V gel battery, 8 in series, 2 in parallel
4. 450W solar panel, 10pcs, 5pcs in series, 2pcs in parallel

zrs off grid solar system company
15KW Off Grid Solar Kit in Indonesia

1. Hybrid solar inverter 15KW, 1 pc
2. MPPT Solar controller 192V 50A, 1 pc
3. 550w solar panels, 16pcs, 8pcs in series, 2pcs in parallel

hdsx off grid solar system company
3 Phase Off Grid Solar Kit 80KW in Lebanon

1. 384v 80kw three phase solar inverter, 1 pc.
2. 384v 100A Solar controller, 2 pcs.
3. 570w solar panels (15 in series, 8 in parallel).
4. Combiner box 2 inputs and 1 outputs, 4 pcs.
5. Lithium battery, 192,400AH

ABOUT US

Established in 2006 year, Guangdong XINDUN Power Technology is a high-tech company with R & D, manufacturing and providing solar solution service, solar system kit, solar inverter, solar controller, solar batteries, solar panels with good quality and reasonable price. China's source manufacturer, solar products are exported to more than 100 countries and regions around the world.

solar inverter company 20 years experience

20+years

Service experience

solar inverter company 200 staff

200+

Staff

solar inverter company 10000 sqm factory

10000+M²

factory

solar power inverter company

FACTORY STRENGTH

CERTIFICATE

solar energy system supplier business license

Business license

solar energy system supplier ISO Certificate

ISO certificate

off grid solar energy system ROHS certificate

ROHS certificate

off grid solar energy system CE certificate

CE certificate

off grid solar energy system TUV certificate

TUV certificate

off grid solar energy system test report

Test report

WHAT CUSTOMERS SAYS

Frequently Asked Questions

A: Yes, our off grid solar system kits are designed with scalability in mind. You can easily expand the system by adding more solar panels, batteries, or upgrading the solar inverter to meet your future energy demands.

A: Battery lifespan depends on various factors, including usage patterns, depth of discharge, and maintenance. Generally, our high-quality batteries are designed to last for several years, and we provide guidance on proper battery care for optimal performance.

A: While our off grid solar kits are designed for easy installation, professional assistance is recommended for ensuring proper system integration, safety, and optimal performance. We can connect you with qualified installers if needed.

A: Regular maintenance, such as cleaning the solar panels and checking the battery connections, is necessary to ensure the solar system’s efficiency and longevity. We provide maintenance guidelines and support to help you keep your solar system in optimal condition.

A: The off grid solar system can power a wide range of appliances and devices depending on its capacity. Our team can help you assess the power requirements of your specific appliances to ensure proper system sizing. You can provide the total power of your electrical appliances, usage time, light, etc., and Xindun’s professional planners will customize the size and size of the off grid solar system for you.

A: The number of batteries required depends on your energy storage needs. Factors such as daily energy usage and desired autonomy play a role. Of course we have formulas to calculate, but this will increase the difficulty of your configuration. Xindun experts can guide you in calculating the optimal battery capacity for your solar system, quick reply within 2 hours.

Reputation and Experience: Look for a supplier with a solid reputation and extensive experience in the off-grid solar system industry. Check their track record, customer reviews, and project portfolio.

Quality of Components: Ensure that the supplier uses high-quality components from reputable manufacturers for solar panels, solar inverter, solar batteries, and other system components. Quality components ensure better performance and longer lifespan.

System Design and Customization: Choose a supplier that offers tailored solar system design and customization services. They should be able to assess your specific needs and provide a system that matches your energy requirements and location.

Technical Support and After-Sales Service: Check if the supplier offers reliable technical support, both during the installation process and after-sales. Prompt assistance, troubleshooting, and warranty support are crucial for a smooth and hassle-free experience.

Pricing and ROI: Consider the pricing structure and return on investment (ROI) offered by the supplier. Compare quotes from different suppliers, considering factors like solar system efficiency, warranties, and long-term savings on energy bills.

Choosing a reliable off grid solar system supplier, look no further than Xindun Solar from China.
